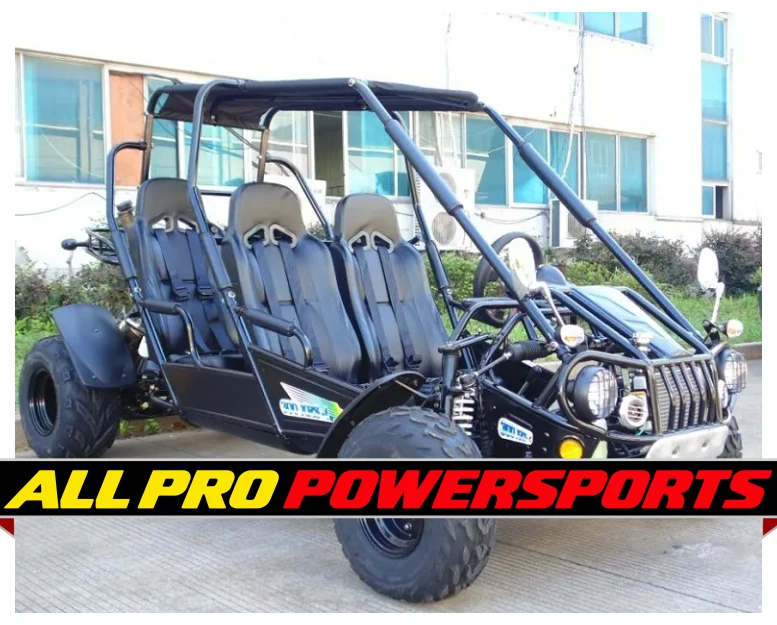

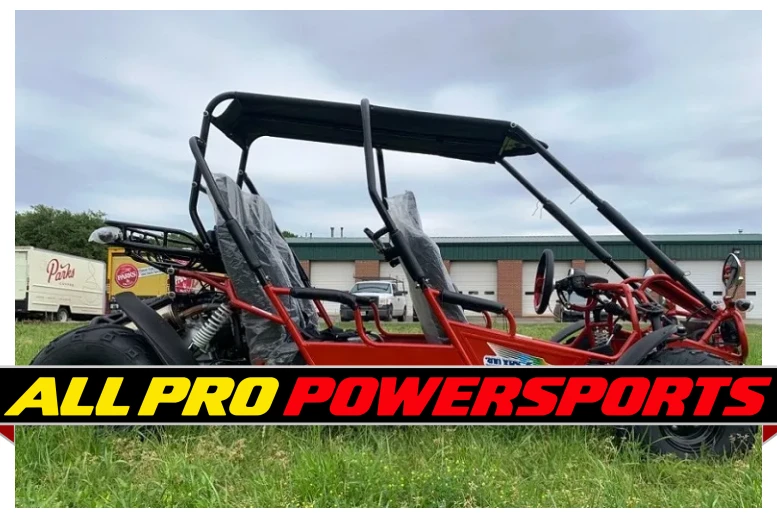

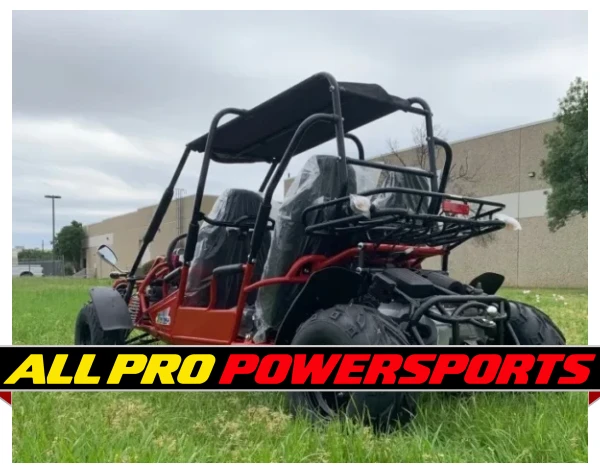

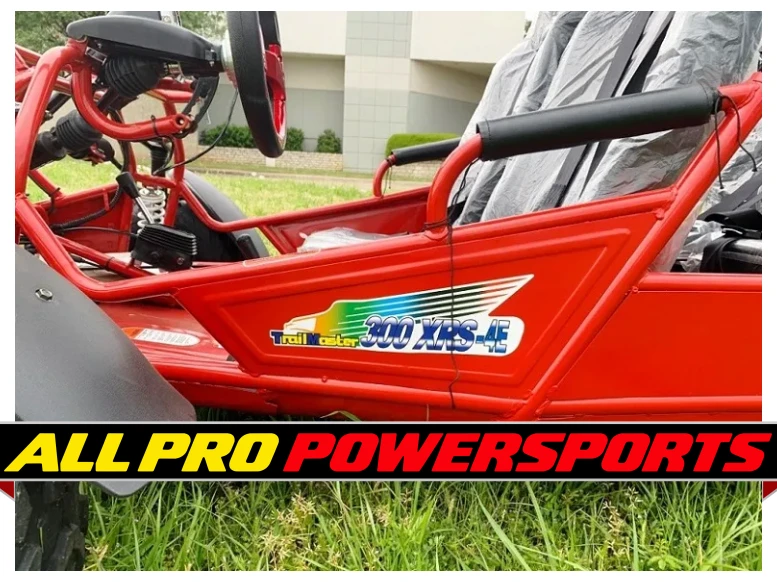

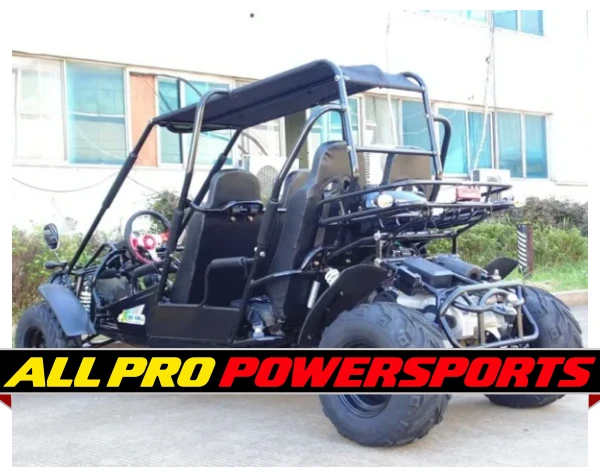

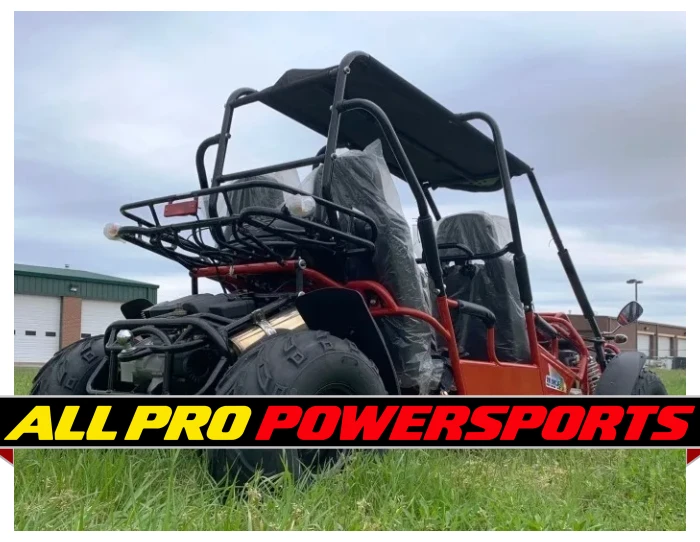

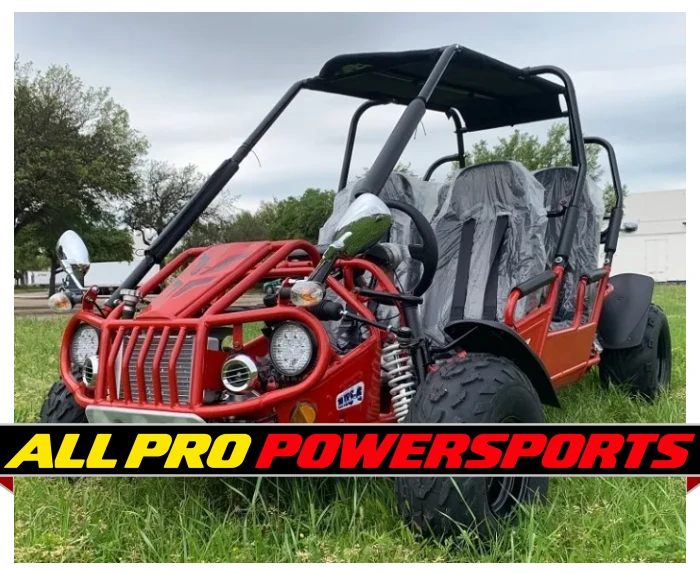

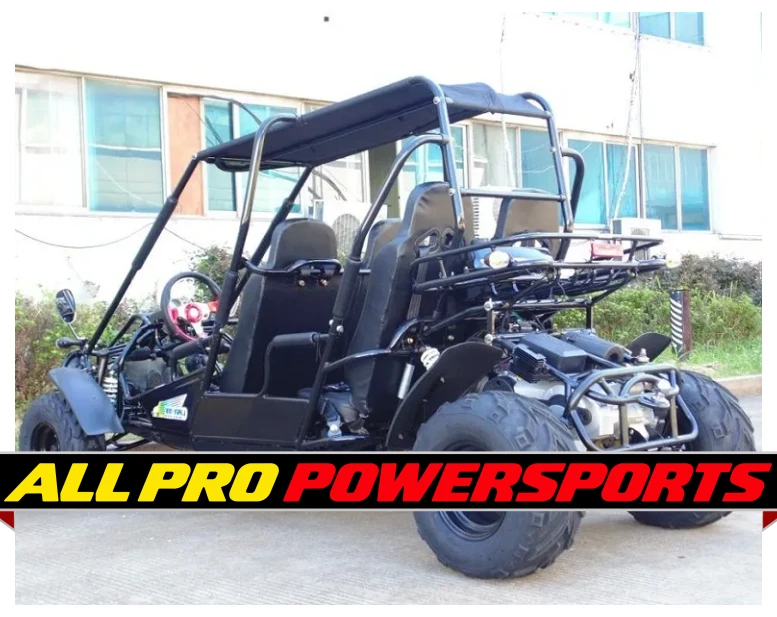

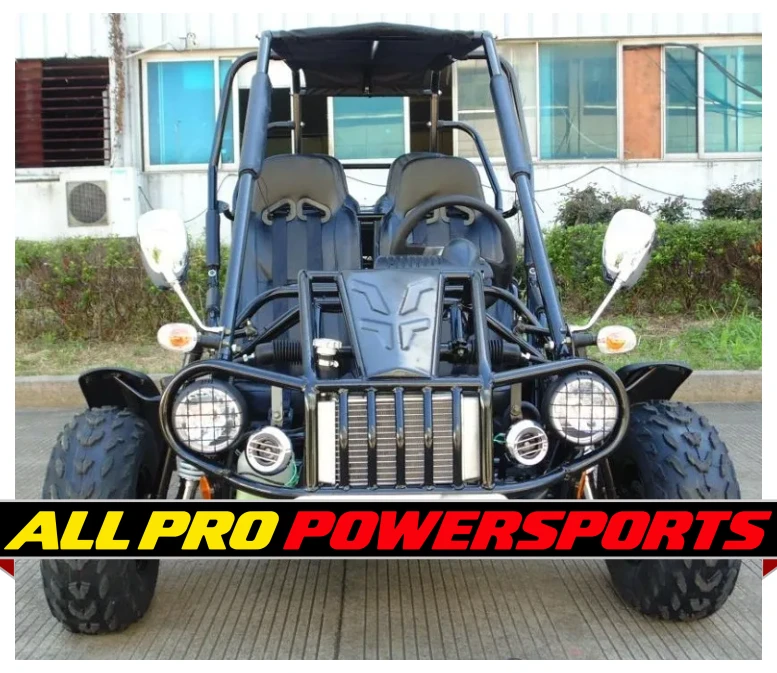

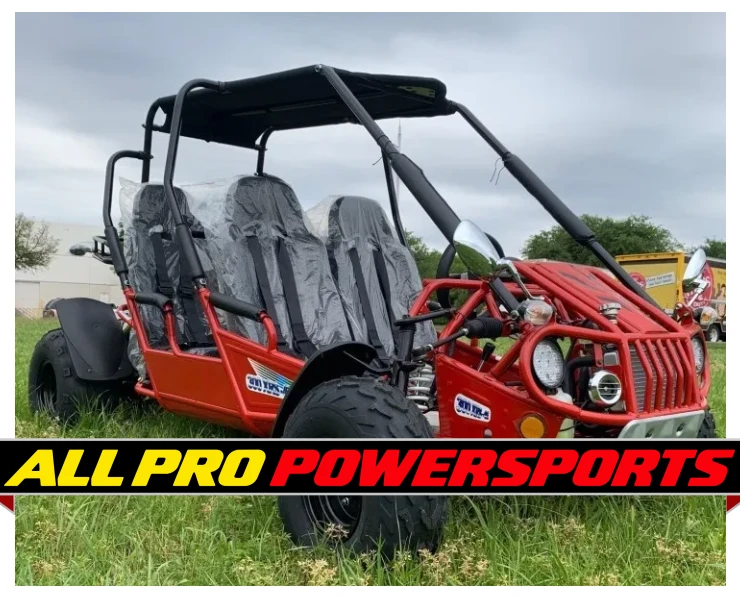

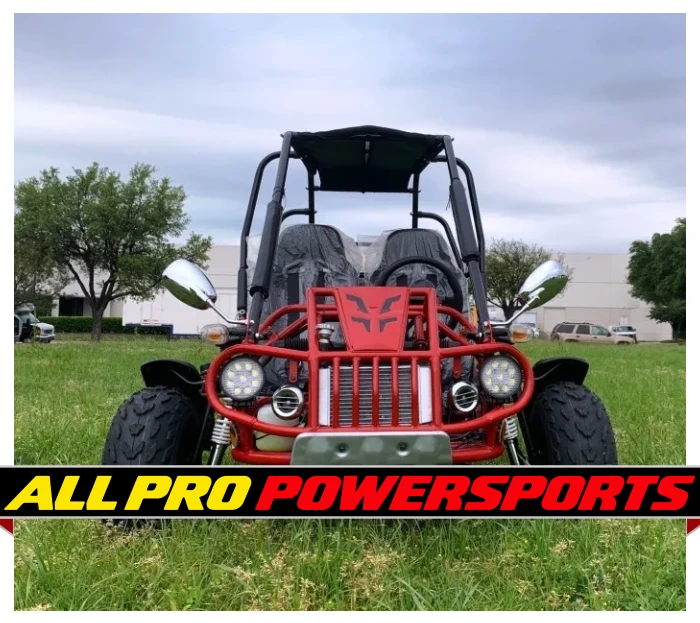

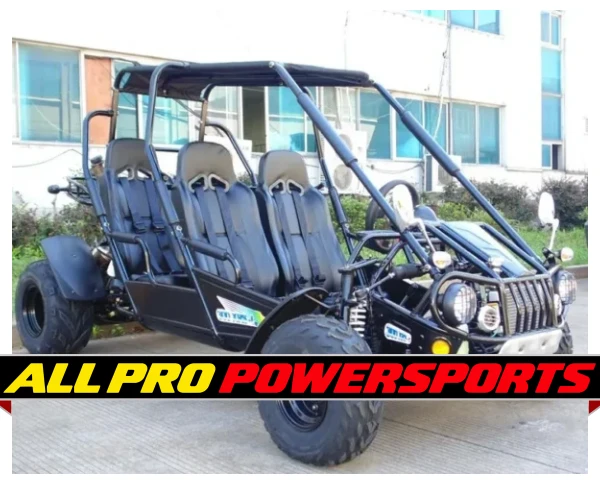

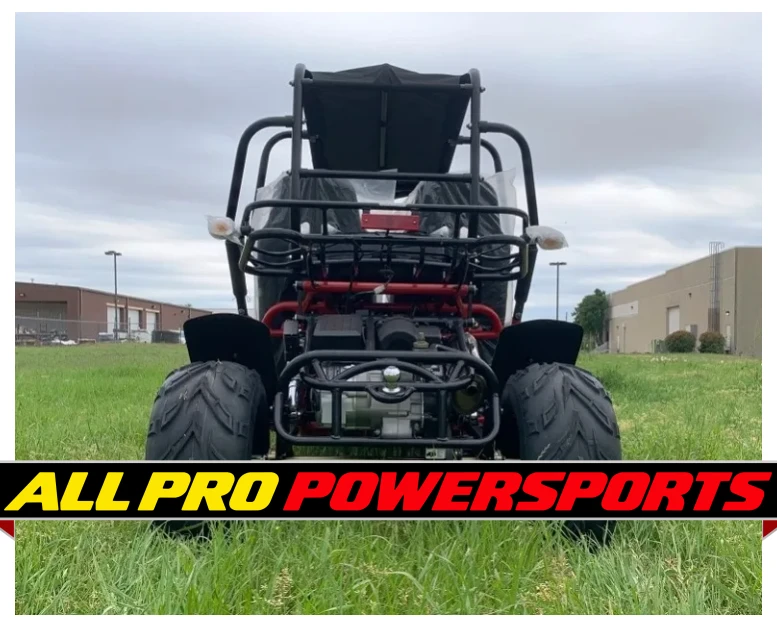

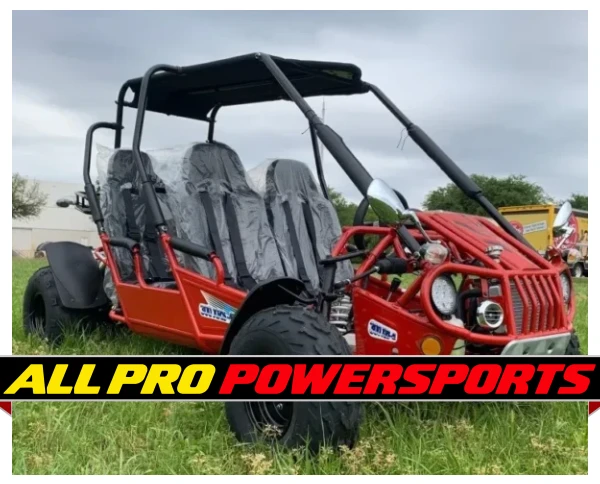

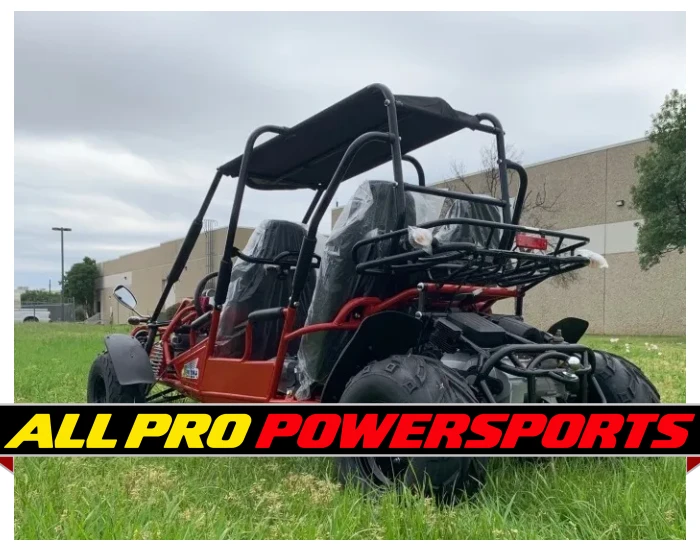

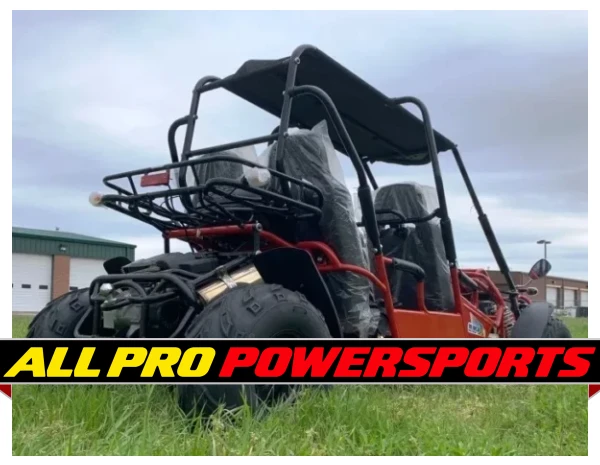

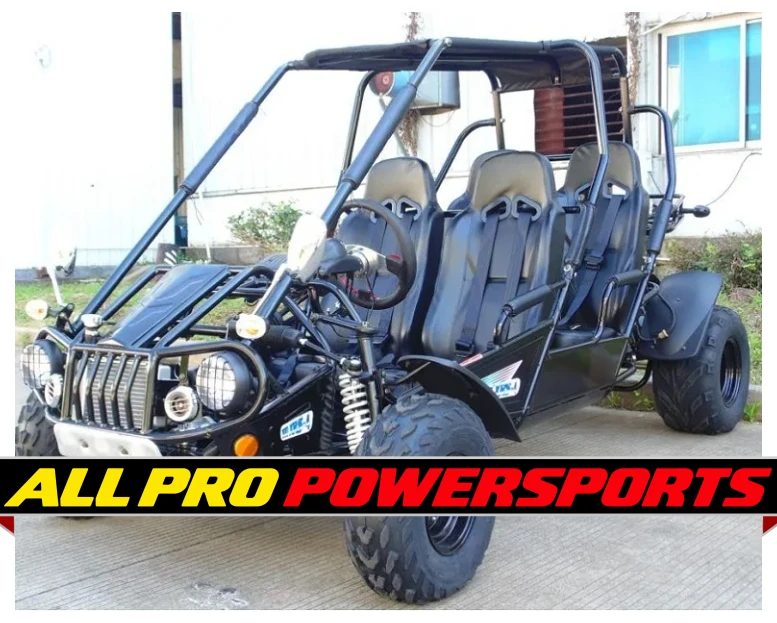

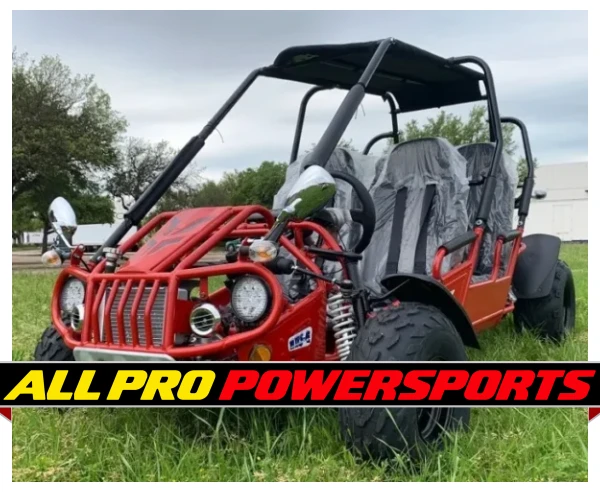

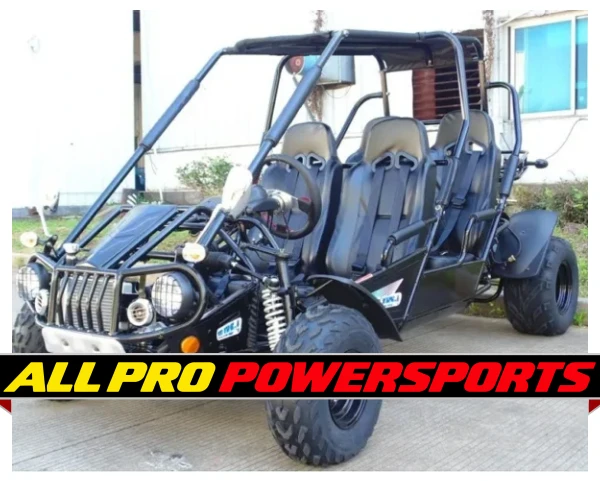

TrailMaster EFI Go Kart 300 XRS4E, CVT Fully Automatic Liquid Cool Engine

Description

Explore the TrailMaster 300 XRS4E EFI at All Pro Powersports. This family size go-kart is powered by a 275.6cc fuel injected single cylinder 4-stroke engine producing 17.4 HP, driving through an automatic CVT with reverse for a top speed of 45 mph. Front and rear seats on an 84.5 inch wheelbase and an 800 lb max load give plenty of room for passengers. Dual A-arm front suspension, a rear swing arm and hydraulic disc brakes keep it controlled on the trail.

Specifications

SKU: ALLPRO-GK-085
Condition: New
Top Speed: 20 MPH Speed Controller Installed (Limit can be removed upon request)
Make: TrailMaster
Model: 300 XRS4E EFI
Engine Type: 4-Stroke, Single Cylinder
Displacement: 275.6cc
Fuel System: EFI
Max Output: 17.4 HP @ 6500 rpm
Max Torque: 16 lb ft @ 5000 rpm
Bore x Stroke: 2.85 x 2.63 in
Max Speed: 45 mph
Climbing Ability: 15 degrees
Min Turning Radius: 229 in
Ignition: ICM, EFI Ignition Module RM1A1
Starting System: Electric
Battery: 12V 10Ah
Gear Oil: MoS2 and W-2WD-4D
Clutch: Automatic CVT with Reverse

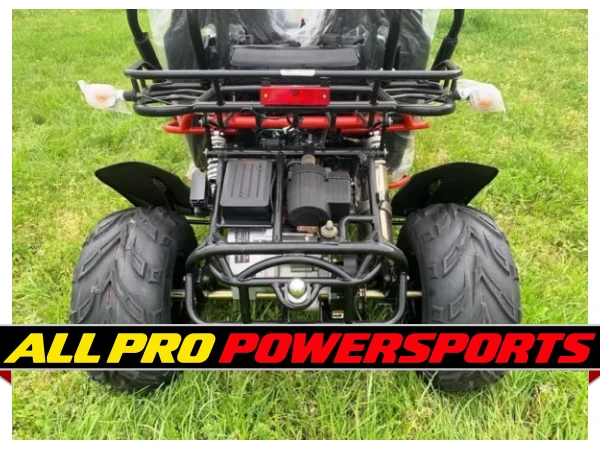

Driveline: Chain, Dual Wheel Drive

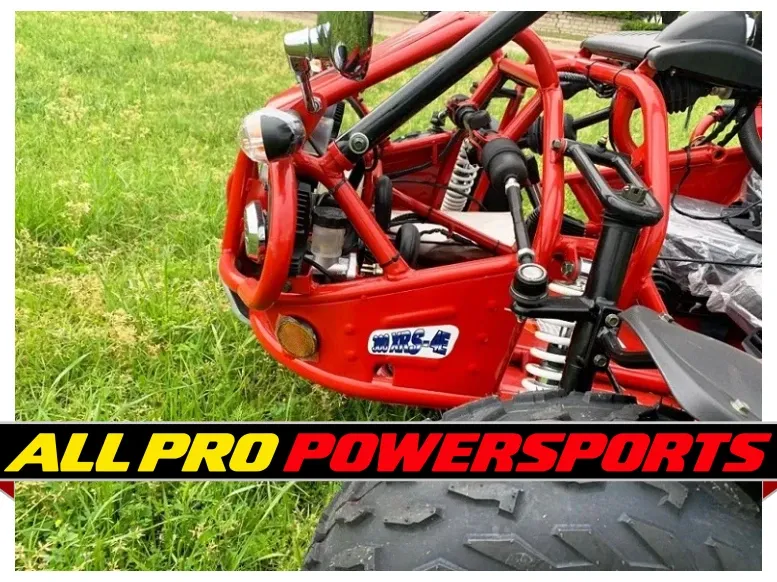

Suspension Front / Rear: Dual A-Arm / Swing Arm
Brakes: Hydraulic Disc Front and Rear

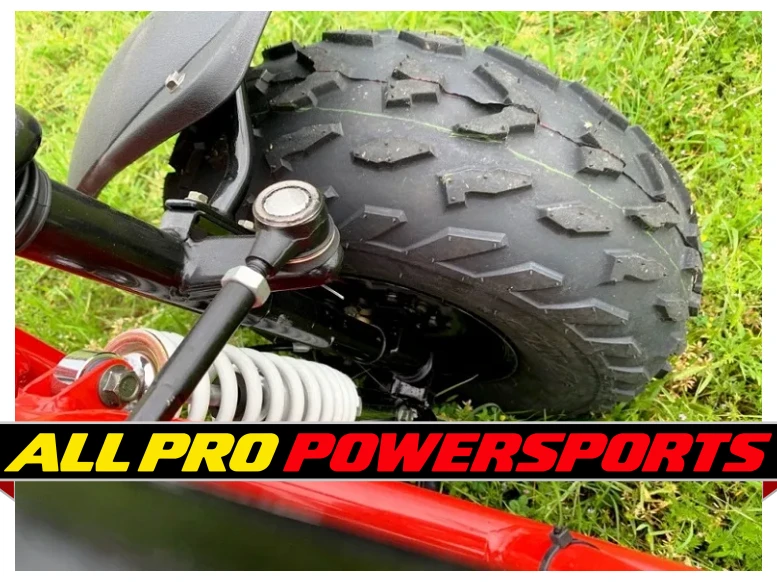

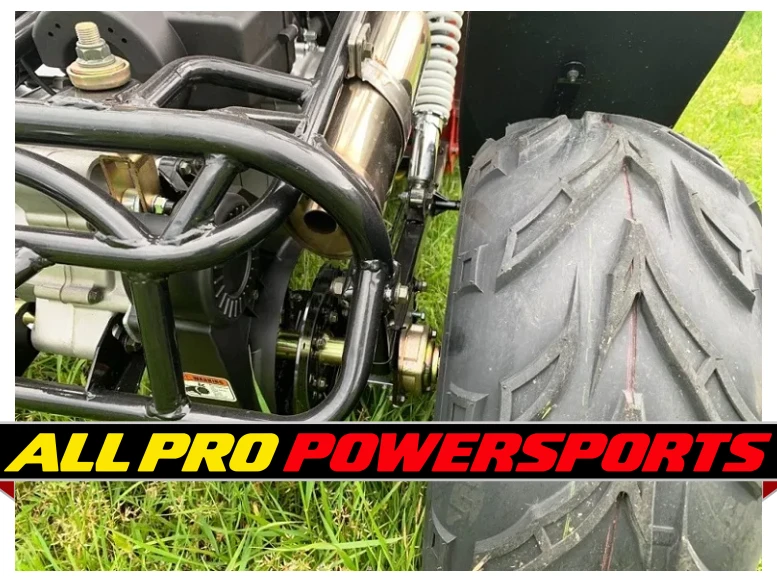

Tires Front / Rear: 20×7-8 / 22×10-10
Fuel Capacity: 2.25 gal
Weight Net / Gross / Shipping: 608 / 758 / 950 lbs
Max Load: 800 lbs
Wheelbase: 84.5 in
Overall L x W x H: 116.1 x 54.5 x 59.2 in
Crate Size: 120 x 45 x 28 in

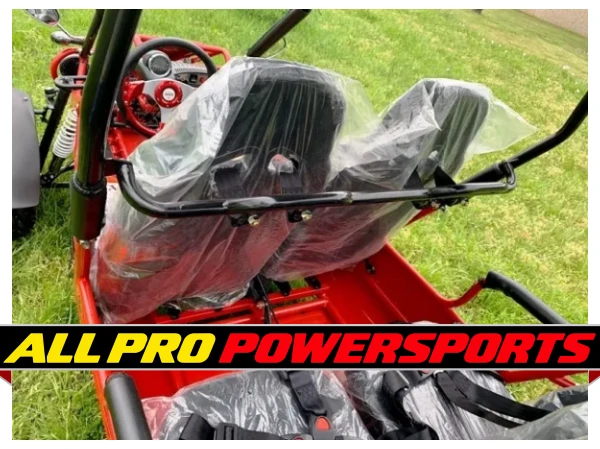

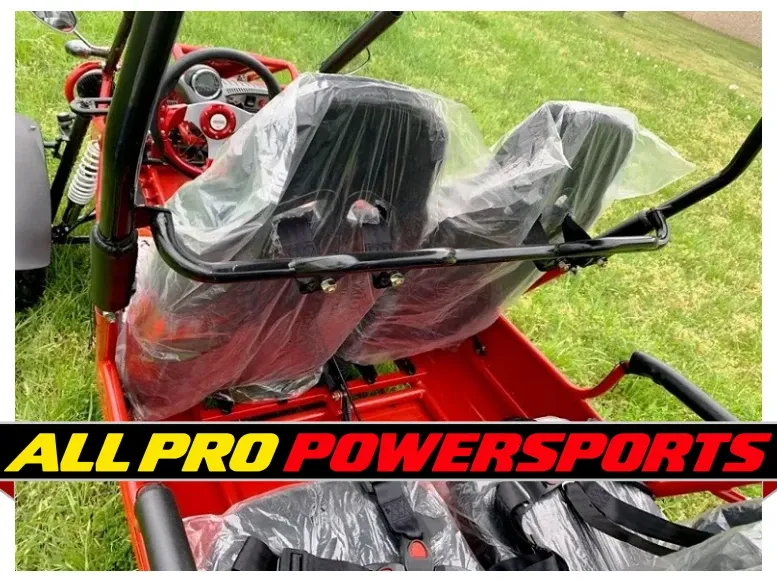

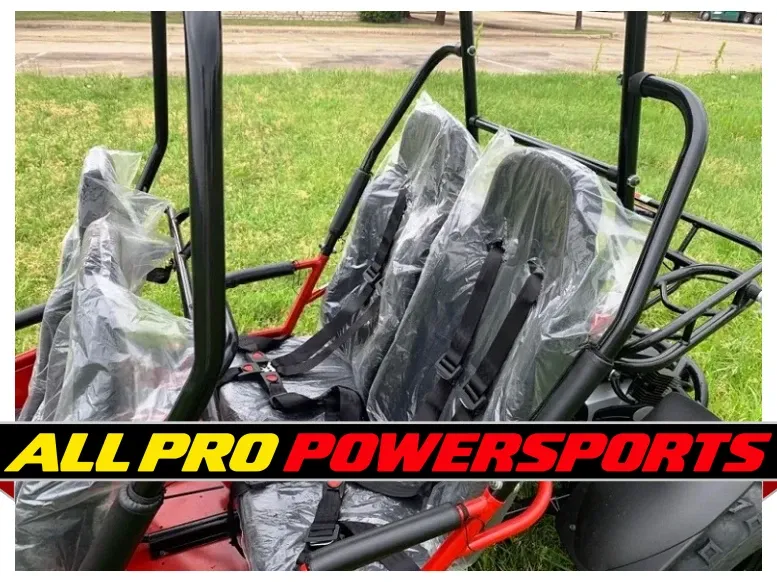

Seat Height Front / Rear: 17 in / 18.2 in
Distance Between Front and Rear Seat: 25.6 in
Pedal to Center Seat Back: 36 to 43 in
